SA5 PORTXVNSA 4 inch IPS LCD Multi-function Handheld …, Adelaide

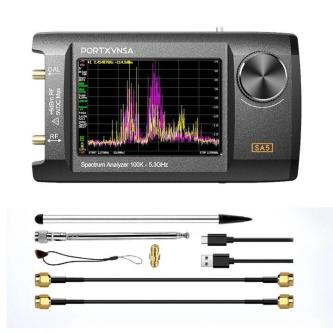

MANUAL Click here to openFirmware Click here to openSA5 Product Features Screen Size 4 inches IPS LCD featuring a large knob for easy operation Spectrum Analyzer Normal mode 0 1 800MHz Ultra mode provides level calibration up to 5 3GHz and can observe signals up to 12GHz Signal Generator Outputs sine waves between 0 1 800MHz square waves up to 4 4GHz or RF test signals up to 5 3GHz when not used as a spectrum analyzer Switchable resolution bandpass filters from 200Hz to 850kHz Optional LNA Built in 20dB Low Noise Amplifier LNA Spectrum Display Display up to 450 points Display four independently configured traceStorage MicroSD card slot for storing measurements settings and screen captures SD card Not includes Input Attenuator Step attenuator adjustable from 0dB to 31dB not usable with LNA Calibration Includes a built in calibration signal generator for automatic self test and input calibration PC Connectivity Connects via USB to function as a PC controlled spectrum analyzer or signal generator Battery 5000mA Rechargeable battery providing at least 10 hours of portable use Max Input Level 10dBm Ensure not to exceed this to avoid damage Specifications SpecificationDetailsInput Frequency Range100kHz to 800MHz in normal mode up to 6GHz with ULTRA mode enabledInput Impedance50 ohm when input attenuation set to 10dB or moreInput AttenuationSelectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps when LNA not activeMaximum
