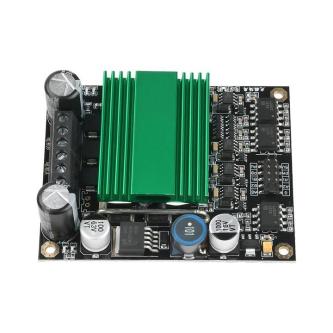

High Power H-bridge DC Motor Controller Drive Module 12V …, Adelaide

Specifications Input Voltage DC 12V 48VMaximum Current 100ASwitching Frequency Up to 60kHzSignal Isolation 10M high speed optocouplerOn Resistance As low as 0 0015ΩCompatibility Compatible with 3 3V and 5V microcontrollersControl interface When A1 A2 0 0 it is the brakeWhen A1 and A2 are equal to 1 0 it is a forward rotationWhen A1 and A2 0 1 it is reversedPA is PWM wave input motor speed regulation G is the common ground pin with the control board B is the same control Features 1 High Power Output Capable of handling a maximum current of 100A this module ensures reliable performance for high power DC motors in demanding applications 2 Wide Voltage Range Supports input voltages from 12V to 48V meeting various power needs for different setups 3 Optimized Heat Dissipation Equipped with large heat sinks to efficiently control temperatures during high current operations maintaining stable performance 4 Advanced Signal Isolation Features 10M high speed optocoupler isolation to reduce interference and enhance control system reliability5 High Switching Frequency Operates at up to 60kHz for precise motor control avoiding noise and improving functionality in key motor control tasks Package Included 1 x High Power H Bridge Motor Driver Module
