DeepSDR V6 High Performance DSP Digital Receiver 4.3 Inch …, Hobart

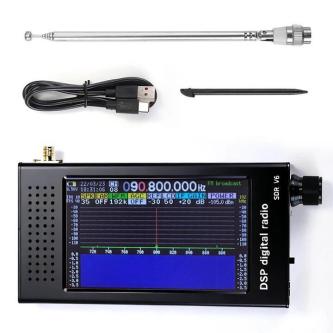

Product Overview The DeepSDR 101 is a high performance DSP digital demodulation radio based on an advanced SDR Software Defined Radio architecture featuring real time spectrum and waterfall plot display capabilities at 192kHz It employs Taylo quadrature mixer technology and a zero IF ZIF receiver design combined with 16 bit high precision ADC sampling to achieve ultra low noise and high dynamic range signal reception It supports multiple demodulation modes including CW AM SSB LSB USB WFM and stereo FM making it suitable for amateur radio HAM shortwave listening and FM broadcasting The entire unit features an all aluminum alloy CNC machined casing a 4 3 inch high brightness IPS touchscreen and a multi functional encoder making it highly portable and suitable for outdoor use Specifications Display Technology 4 3 inch IPS 800x480 resolution DC dimming high brightness LCDControl Method Resistive touchscreen rotary encoderFrequency Range 100kHz 149MHzOperating Modes CW AM SSB LSB USB WFM FM stereo headphones required Step Frequency 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHzSpectrum Bandwidth 192kHz 128kHz 64kHz FFT real time spectrum displayAntenna Interface BNC male connector impedance 50Ω maximum input power 20dBmReference Crystal Oscillator TCXO 26MHz ±0 5ppmAudio Interface Supports standard 3 5mm headphones or CTIA US standard headphonesSpeaker Power Maximum 3W 4Ω multimedia speakerCharging Port USB Type C 5 0V 2ACurrent C
