DPA1698 Dual-Channel DDS Signal Source Function Signal …, Mackay

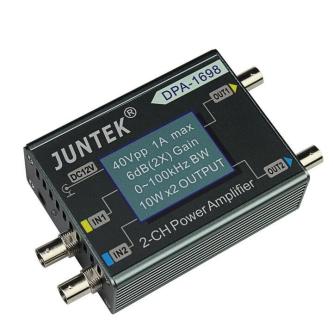

Specifications Signal Bandwidth 0 100KHzInput Voltage Range 0 20VppOutput Voltage Range 0 40VppVoltage Gain 6dB 2x Amplification Maximum Output Current 1AOutput Maximum Power 10W x 2Output Impedance≤1ΩPhase Consistency Aligned with InputDimensions 139mm x 80mm x 37 5mmWeight 351gInstrument Introduction The DPA 1698 dual channel power signal amplifier features a high strength aluminum alloy casing ensuring durability and efficient heat dissipation It amplifies the input signal voltage amplitude by 2 times with a maximum single channel current of up to 1A and a frequency range of 0 100KHz Compatible with all signal generators produced by our company it can also be used independently as a power amplifier with signal sources from other manufacturers This amplifier is ideal for applications in educational instruments industrial control production line testing metal detection medical therapy medical aesthetics ultrasonic equipment driving and more Features 1 High Voltage Output Achieves up to 40Vpp output for robust signal amplification 2 Dual Channel System Operates simultaneously with two independent channels providing versatile functionality 3 6dB Gain Ensures precise amplification for optimal performance in diverse applications 4 Compact and Lightweight Portable size with a weight of only 351g ideal for fieldwork 5 Wide Signal Bandwidth Handles frequencies from 0 100KHz suitable for multiple signal types Package Included 1 x DPA 1698 Dual C
