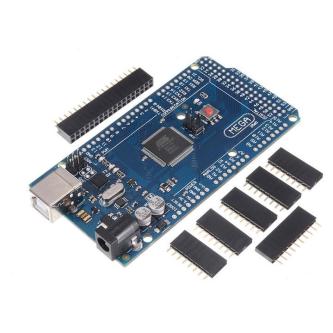

Mega 2560 R3 ATmega2560-16AU Development Board Without USB …, Sydney

Description This is compatible R3 Mega2560 ATmega2560 16AU control board without USB cable and unsolder Pin header Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I O input output terminal 14 groups do PWM outputs 16 sets of simulation than the input side group 4 UARTs hardware serial ports using the 16 MHz crystal oscillator With the bootloader download the program directly via USB without having to go through other external writer Supply part of the optional USB power or as an external power using the AC to DC adapter and battery Rapid growth due to open the original code as well as the concept of using Java cross platform C language development environment for peripheral module The main reason attracted Artist can quickly use the language with Flash or Processing software communication to make multimedia interactive works development IDE interface is based on open source principles allows you to free download for use in project work school teaching motor control interactive works Power supply designThere are two options for the power supply system of the Mega USB direct power supply or external power supply The choice of power supply will be switched automatically External supply AC to DC adapter or the battery can be selected on this control panel Limit the voltage range of 6V 12V but if the voltage supplied is less than 6V I O port may not be supplied to a voltage of 5V and therefore inst
