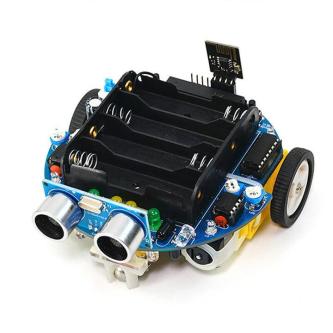

HU-063 Graphical Programming 51 Intelligent Car Kit …, Townsville

Specifications Manual Click here to openKit Name HU 063 Graphical Programming 51 Smart Car KitWorking voltage four AA batteries 6V Package not includes Maximum working current under the condition of 6V voltage and no load motor it is about 230mA Static working current motor does not rotate about 30mA PCB size 98mm 98mmFeatures 1 Control with mobile Phone APP and bluetooth 2 Four modes can be switched by pressing the key 3 Speed can be adjusted by pressing the key 4 Multiple LEDs display the status of the car 5 Learn programming with graphical programming software More details 1 Mode key Switch mode keys to infrared tracking two red lights are on Bluetooth remote control two red lights are flashing ultrasonic obstacle avoidance right red light is on infrared obstacle avoidance left red light is on 2 Speed button 30 in the first gear 50 in the second gear 80 in the third gear 100 in the fourth gear 3 Bluetooth module Bluetooth remote control is realized and the car is controlled by mobile phone core storm intelligent platform APP 4 Ultrasonic obstacle avoidance module ultrasonic wave detects whether there are obstacles in front and automatically avoids obstacles when there are obstacles The obstacle avoidance distance can be modified by graphical programming software 5 Download interface use our graphical programming software for nuclear storm to program get started quickly easily program the car and download the programmed conten
